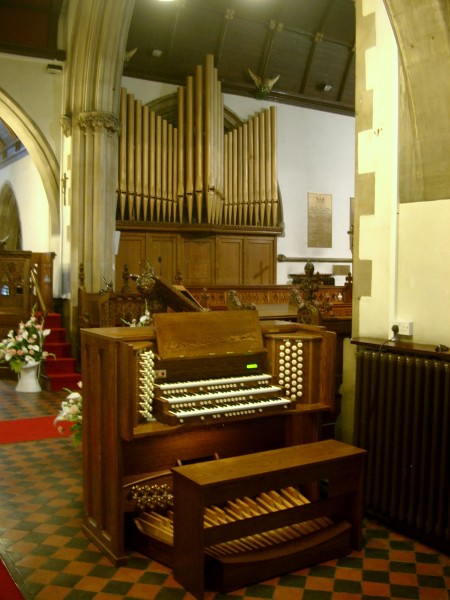

The new Phoenix organ for St Margaret's Mountain Ash has a three manual and pedal draw-stop console finished in Indian Rosewood colour.  The organ has 46 speaking stops, a comprehensive set of registration aids and twelve audio channels including a high powered channel for the tuba and a bass speaker column. The organ was installed in May 2006.
GREAT

Double Diapason 16
Open Diapason I 8
Open Diapason II 8
Claribel Flute 8
Stopped Diapason 8
Octave 4
Chimney Flute 4
Twelfth 2
2/3
Fifteenth 2
Fourniture IV
Double Tromba 16
Trumpet 8
Swell to Great
Choir to Great
GPPC
  SWELL (enclosed)

Bourdon 16
Geigen Diapason 8
Stopped Flute 8
Viola de Gamba 8
Voix Celestes II
Principal 4
Concert Flute 4
Flautino 2
Mixture III
Contra Fagotto 16
Trumpet 8
Oboe 8
Clarion 4
Tremulant
Octave
  CHOIR (enclosed)

Principal 8
Rohr Flute 8
Unda Maris II
Prestant 4
Koppel Flute 4
Nazard 2
2/3
Block Flute 2
Tierce 1
3/5
Larigot 1
1/3
Clarinet 8
Trompette 8
Tuba Mirabilis 8
(unenclosed)
Tremulant
Swell to Choir
PEDAL

Contra Bourdon 32
Principal 16
Bourdon 16
Violone 16
Octave 8
Bass Flute 8
Fifteenth 4
Mixture III
Contra Bombarde 32
Posaune 16
Trumpet 8
Swell to Pedal
Great to Pedal
Choir to Pedal
  PISTONS

8 Pistons to Swell
8 Pistons to Great
8 Pistons to Choir
12 General Pistons
6 Reversible to Couplers
3 Sequence Plus Pistons
1 Sequence Minus Piston
Set & General Cancel Pistons
16 Memory levels
Piston Sequencer, 99 levels
8 Pedal Toe Pistons
8 Swell Toe Pistons
2 Pedal Toe Piston Reversers
Sequence Plus Toe Piston
  AUDIO

12 Audio channels
10 full range
1 high power
1 bass column
Reverberation System

FEATURES
LCD Display and controls incorporating:
   piston memory level
   4 Temperaments
   Pitch
   Volume
   Transpose
   Reverb time and level
